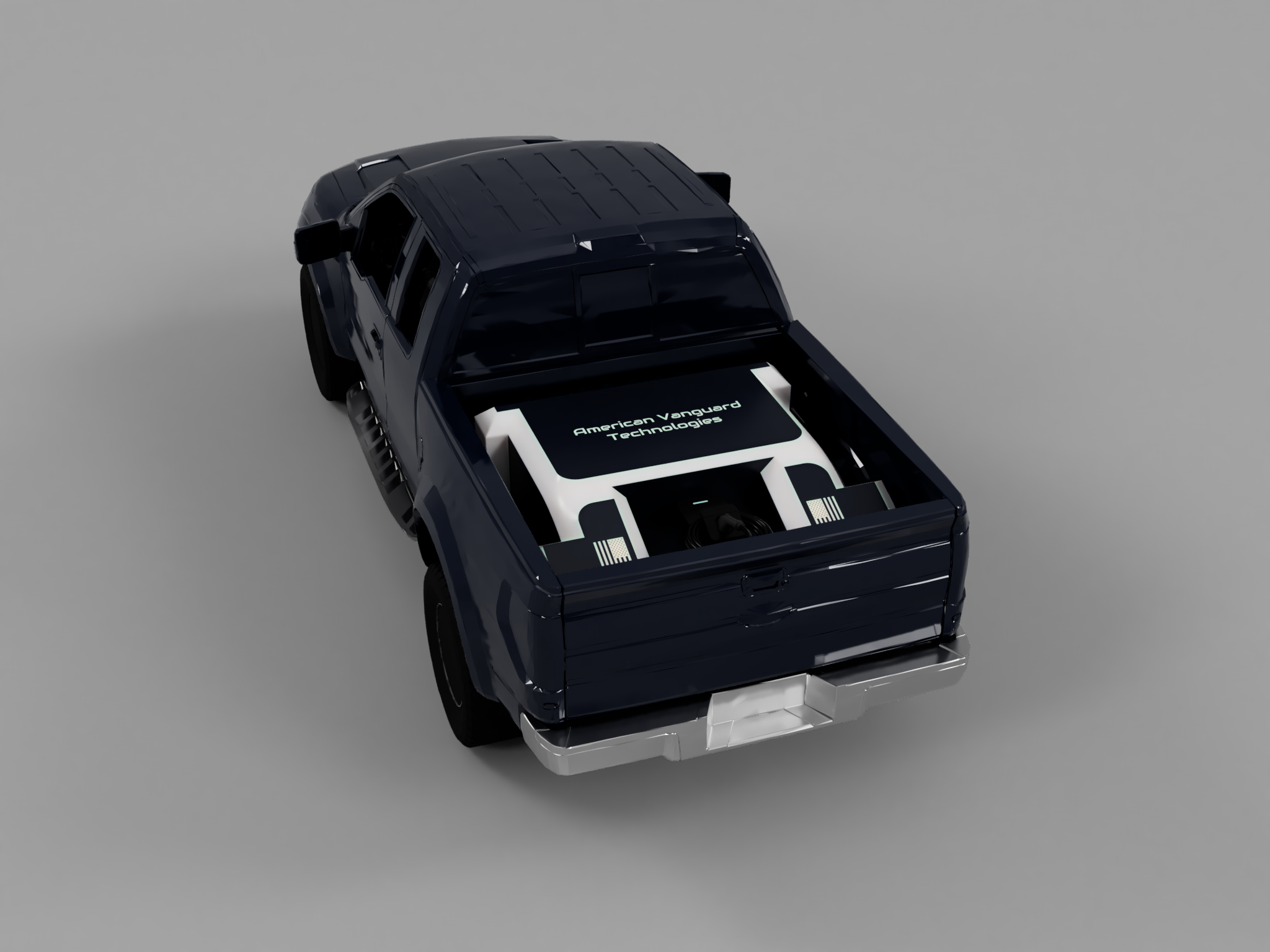

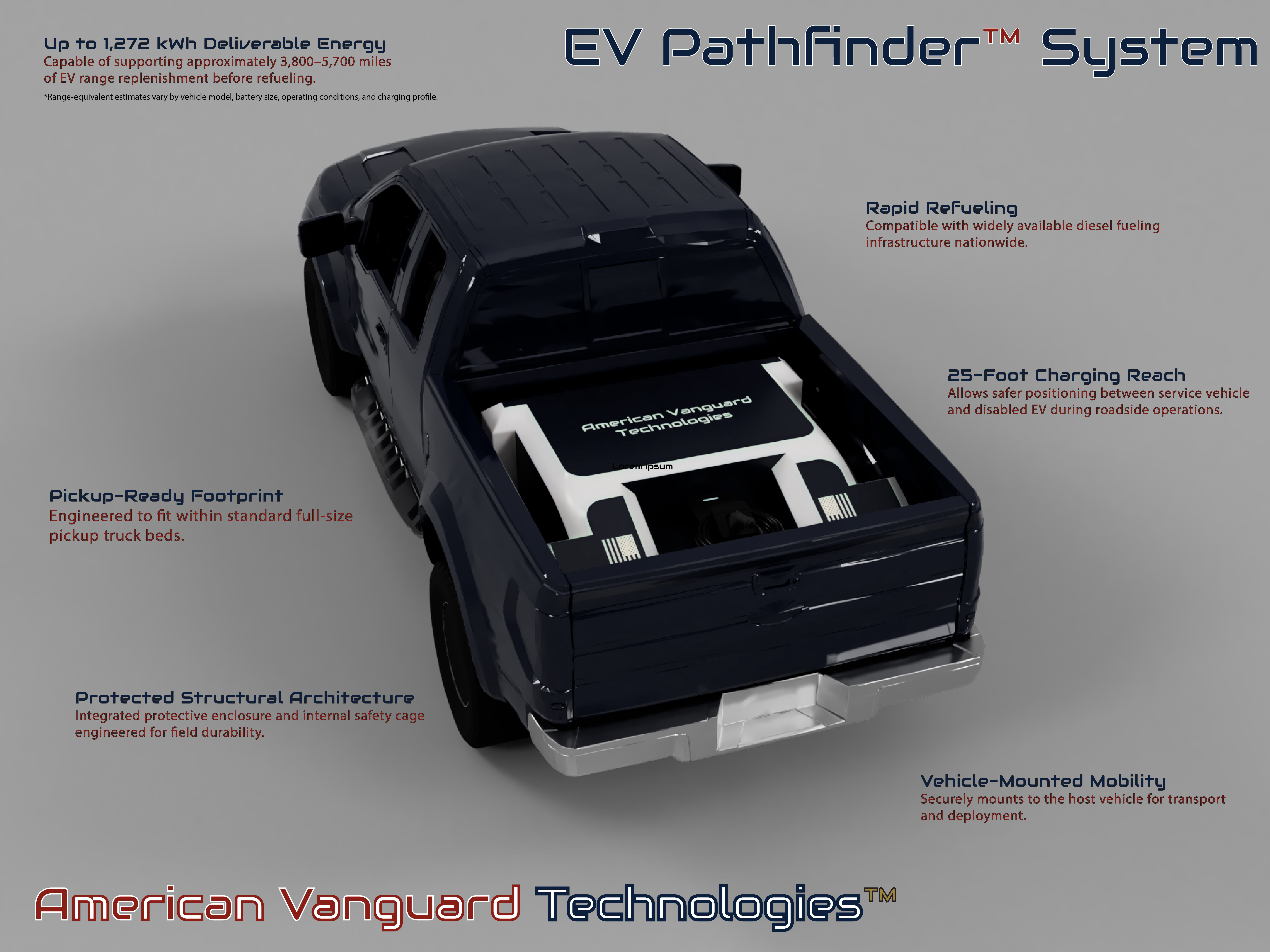

System OverviewThe EV Pathfinder System is designed as a mobile or semi-mobile electric vehicle charging solution capable of supplying up to 19.2 kW of Level 2 AC charging output. Configurations may utilize either a diesel-powered generator system with an 80-gallon fuel tank or a propane-powered generator system with a 100 lb propane tank, each paired with a 22 kW generator architecture to support high-output EV charging applications.
Key Highlights
High-Output Charging
Supports Level 2 charging output up to 19.2 kW at 80 A and 240 V AC.Dual Fuel Path Options
Configurable around either diesel fuel storage or propane fuel storage depending on deployment needs, runtime priorities, and infrastructure.22 kW Generator Architecture
Both generator configurations are based on a 22 kW output class to support demanding charging and field-power requirements.Charging Specifications
Charging TypeLevel 2 AC EV ChargingMaximum Charger Output19.2 kWCharging Current80 ACharging Voltage240 V ACGenerator Output Class22 kW
Configuration Comparison
Diesel Generator Configuration
Fuel TypeDieselTank Capacity80 gallonsGenerator Rating22 kWEstimated Energy CapApproximately 954 kWh to 1,272 kWhEfficiency BasisEstimated diesel generator efficiency range of 30% to 40%
Propane Generator Configuration
Fuel TypePropaneTank Capacity100 lb propane tankApprox. Liquid VolumeApproximately 27 to 29 gallonsGenerator Rating22 kWEstimated Energy CapApproximately 250 kWhEfficiency BasisEstimated propane generator efficiency range of 20% to 30%
Engineering NotesEnergy-cap values shown above are engineering estimates derived from assumed fuel energy density and generator efficiency ranges. Actual field performance may vary based on generator loading, ambient conditions, fuel quality, charger efficiency, power conversion losses, and operational profile.
InquiriesInterested in the EV Pathfinder System for fleet support, emergency response, off-grid charging, or deployment-oriented energy applications? Contact American Vanguard Technologies for product and partnership inquiries.
